Name: IW-110LCR
Brand: Atlantic Technology
SKU: IW-110LCR-S
Price: 550.0 USD
Availability: InStock

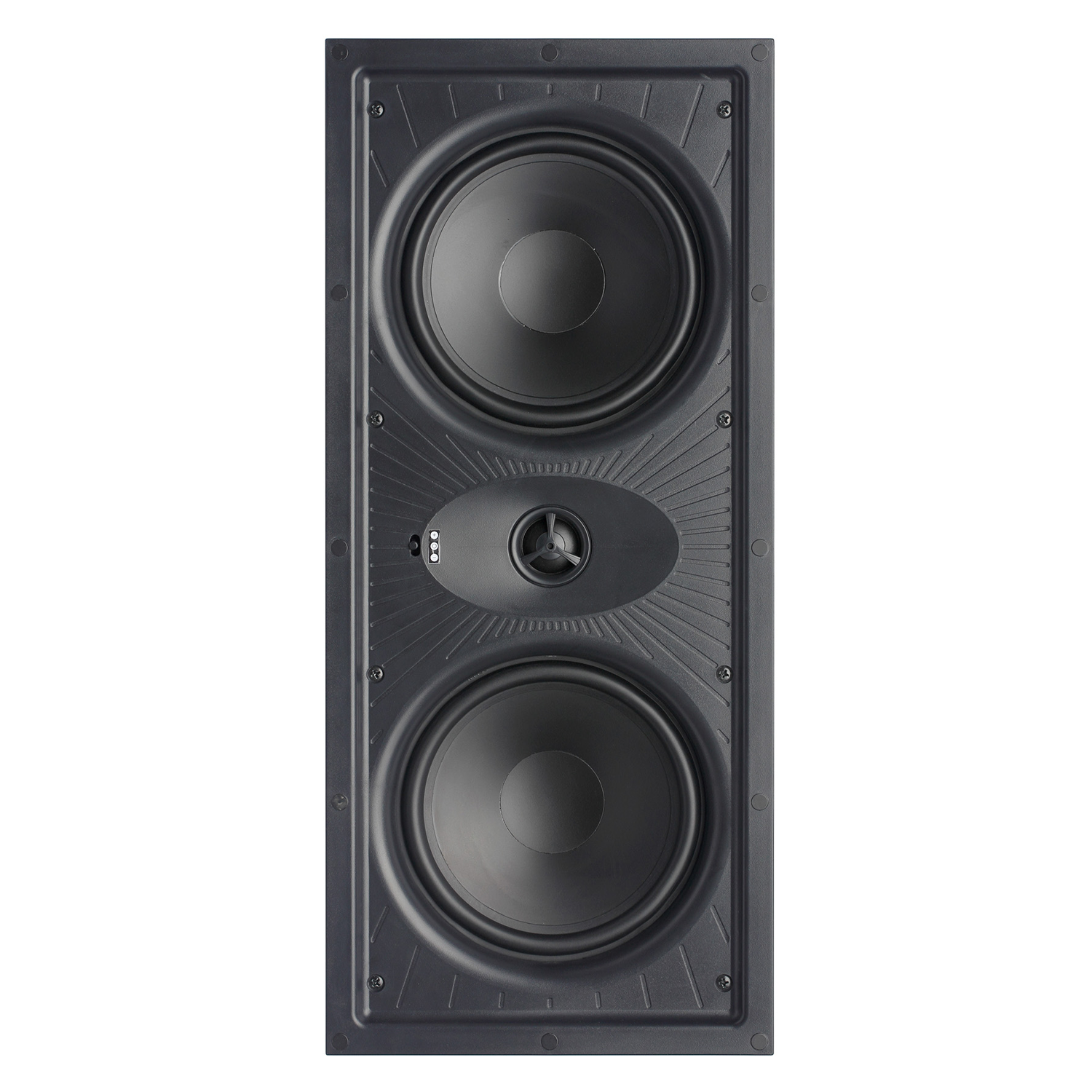

The Atlantic IW-110LCR is an in-wall speaker that combines Atlantic's award-winning sound quality with a sleek, hidden design. It features dual 6½-inch woofers and a 1-inch dome tweeter for a powerful and immersive audio experience, perfect for larger rooms and versatile enough for home theaters or whole-house music systems.

Type: 2-way dipole/bipole switchable
Woofer: (2) 5 ¼” (135mm) GLH*
Tweeter: 1" (25mm) soft dome LRT™
Controls: Front panel Dipole/Bipole switch
Frequency Response: 58Hz – 20kHz ±3dB
Nominal Impedance: 6Ω
Crossover Frequency: 2.1kHz, 3rd order
Sensitivity: 89dB
Recommended Amplifier: 10 – 150 Watts RMS
Dimensions (W x H x D): 15 ½ x 8 ½ x 3 ¾" (395 x 216 x 97mm)
Cutout Dimensions (W x H): 14 ¼ x 7 1 /8” (362 x 181mm)
Weight (ea): 8lbs; 3.6kg each
Optional Back Box: IN-BOX-155LCR

	IW-110LCR	IW-105LCR
Type	M-T-M	2-Way
Optimum Wall Volume	0.75 - 1.50 cu. .	(2) 6 1/2˝ Mineral Damped Polymer
Woofers	(2) 6 1/2˝ Mineral Damped Polymer	(1) 6 1/2˝ Mineral Damped Polymer
Tweeter	(1) 1˝ dome	(1) 1˝ dome
Frequency Response	52 - 20kHz +/- 3dB	56 - 20kHz +/- 3dB
Sensitivity	89dB	87dB
Impedance	6 Ohms	6 Ohms
Crossover Frequency	3200Hz, 1st order	3200Hz, 1st order
Amplifier Power	28-150 Watts	25-150 Watts
Dimensions (Grille Frame)	8 5/8˝ x 19 5/16˝ (220mm x 490mm)	8 5/8˝ x 12 5/8˝ (220mm x 320mm)
Cutout Dimensions	7 1/4″ x 17 7/8″ (185mm x455mm)	7 1/4˝ x 11 1/4˝ (185mm x 285mm)
Net Weight	7.1 lbs.; 3.2kg each	4.6 lbs; 2.1kg each
New Construction Kit	IN-NC-110LCR	IN-NC-105LCR

Silent Aesthetics, Sonic Dynamics

Experience the Sound of Excellence

High-Fidelity Sound

The IW-110LCR delivers high-fidelity sound, immersing you in a rich, detailed audio experience that brings your music and movies to life.

Tailor Your Audio Experience

Customizable Sound

With a 3-position High Frequency switch, the IW-110LCR allows you to adjust the sound to your room's acoustics or your personal taste, giving you control over your audio experience.

Optimized Sound Dispersion

Precision Tweeter Waveguide

The IW-110LCR's precision tweeter waveguide ensures optimal dispersion of sound, providing perfect coverage of the listening area for a balanced and immersive audio experience.

One Speaker, Multiple Roles

Versatile Application

Whether you're setting up a home theater or a whole-house music system, the IW-110LCR adapts to your needs, delivering exceptional sound quality wherever it's installed.

Feel the Power of Sound

Extended Bass Response

The IW-110LCR's dual woofers deliver extended bass response, providing a deeper, richer sound that enhances your audio experience.

Ultra-Thin Bezel and Magnetic Grill

Ultimate Stealth Design

The ultra-thin bezel and magnetic grill offer a sleek and unobtrusive design, blending seamlessly with your interior decor.

*Installation brackets (IN-NC-105/110) can be purchased separately,please contact us for details. These items are considered parts items, and no return or refund will be allowed once shipped.
